tda2030 amplifier circuit 12v and 24v Stereo amplifier Board

Hi, music lovers today in this article we are going to see the TDA 2030 and tda 2050 amplifier boards. This TDA 2330 IC is mainly used in branded home theaters like Philips target and many other branded home theaters.

This TDA 2030 IC will give you 14 watts of audio power output for the channel whereas the TDA 2050 IC will give you 32 watts of audio power output per channel. We can bridge this two ic To use for my subwoofers. And we can add an extra transistor with this board. These are the main features in this tda2030 ic. So let’s see this iC Full Details

This Ic can be used with a single or dual power supply. For tda 2030 IC power supply you can use a 12-0-12 Transformer. And for tda2050 ic you can use a 15-0-15 transformer. Coming to the Audio quality this ic can give you Very Clarity and great audio Output. That’s why many Home theaters and receivers use this ic Frequently.

Tda2030 DUAL Power Supply Circuit Diagram

Tda 2030 ic Single Power Supply Circuit Diagram

For more information about this board, you can read this ic datasheet.

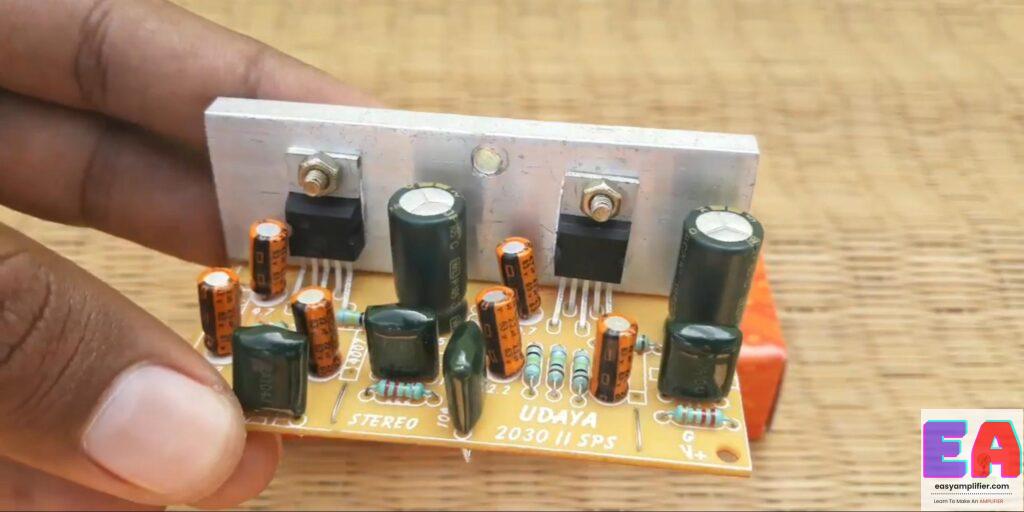

Now we are Going to Review a tda 2030 single supply amplifier board

This board can be operated with both 12v and 24v DC power supply. So you can easily Assemble a stereo amplifier for a truck, lorry, van, bus, etc. You use an 8-inch woofer speaker along with a tweeter To get the best audio result from this board.

This board had some advantageous features Like Tda2030, tda2030a, and tda 2050 Ic are the same circuit diagram. So if you want to increase the ic Output wattage you can easily Remove the 2030 ic And change it with 2050 iC without any components Change.

There are many 2030, and 2050 ic boards available in the Market. You should buy the original ic Instead of a duplicate IC. to get the best performance from this board. How to find the original and duplicate IC in the market. I will show you below images to Show how to find

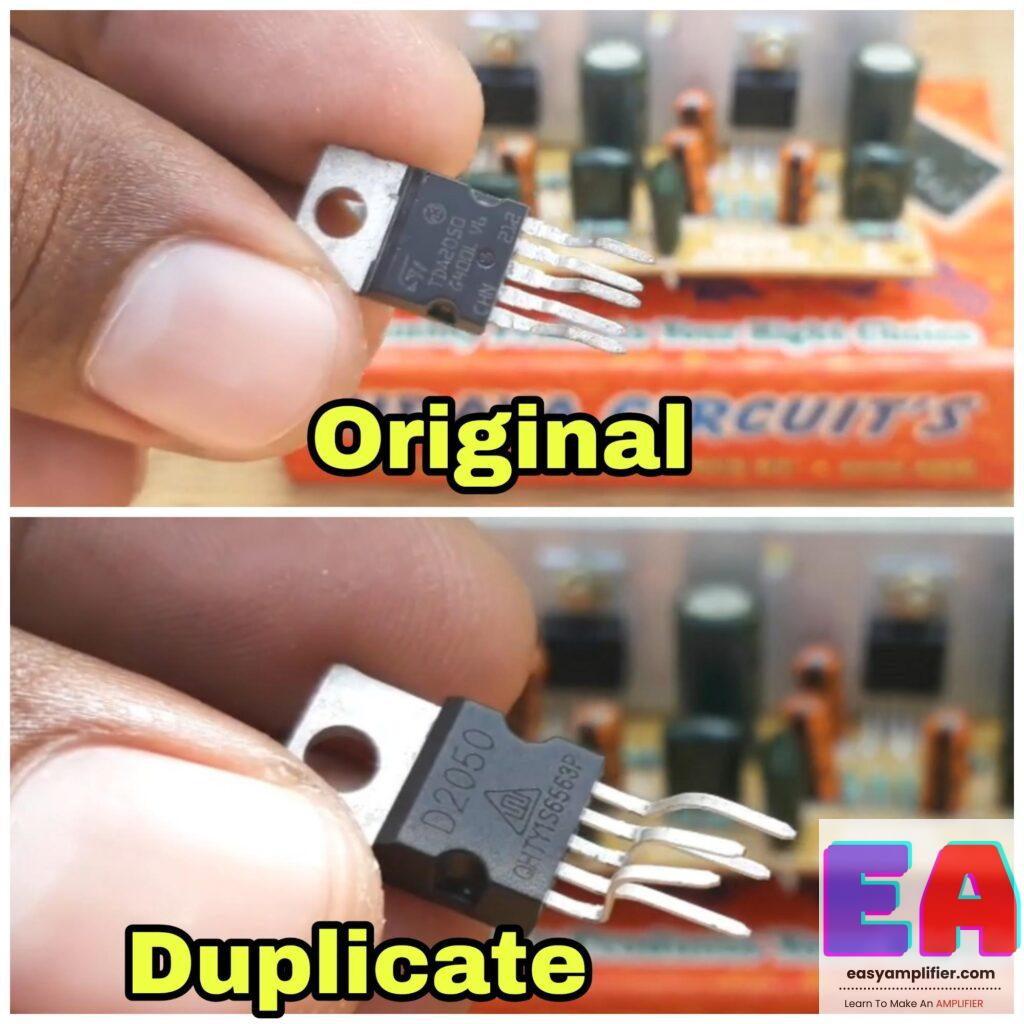

You can see in the above picture Of the IC is Named with At symbol Then That Ic Is original and the Ic has been named with some other symbols then that iC is a duplicate. You should check the symbol carefully before buying this board.

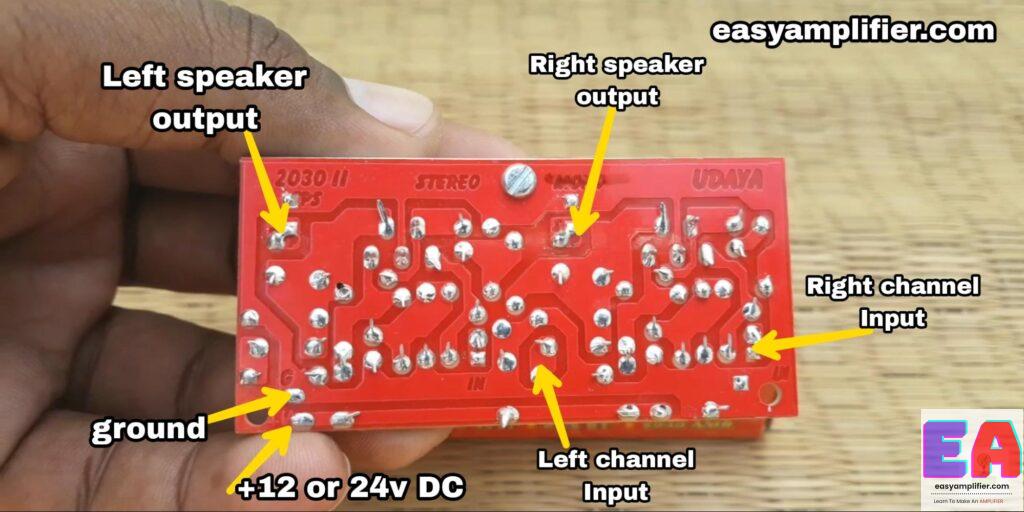

Now we are going to see this tda2030 amplifier circuit 12v and 24v Stereo amplifier Board connection details

If you have any questions about This board connection you can ask me in the comment section below.

This board is manufactured by the Udaya company and it comes with the original tda2030ic. This Board can give you the best performance Audio result with a 24v Power supply.

If you want this board you can ask me in the comment section or via Whatsapp.

So that’s all friends about this small article. If you want to know more about this board you can ask me in the comment section.

Bye friends
